INSULATING GLASS MANUFACTURING

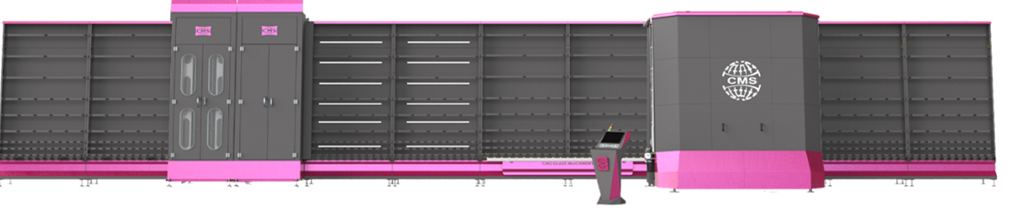

AUTOMATIC GLASS WASHING AND COMBINING LINE WITH HYDRAULIC PANEL PRESS
- Double, triple or structural insulated glass production with hydraulic press system
- Fast high productivity for insulated glass production
- High quality components
- Extremely robust structural design
| IG4.12 | 3020 | 3025 | 3028 | 3033 |
|---|---|---|---|---|
| Glass thickness | 3-12 mm | 3-12 mm | 3-12 mm | 3-12 mm |
| Maximum glass size (LxH) | 3000×2000 mm | 3000×2500 mm | 3000×2800 mm | 3000×3300 mm |
| Minimum glass size (LxH) | 170×350 mm | 170×350 mm | 170×350 mm | 170×350 mm |
| Glass washing speed | 15 m/min | 15 m/min | 15 m/min | 15 m/min |
| Brush quantity | 6 | 6 | 6 | 6 |
| I.G unit thickness | 60 mm | 60 mm | 60 mm | 60 mm |
